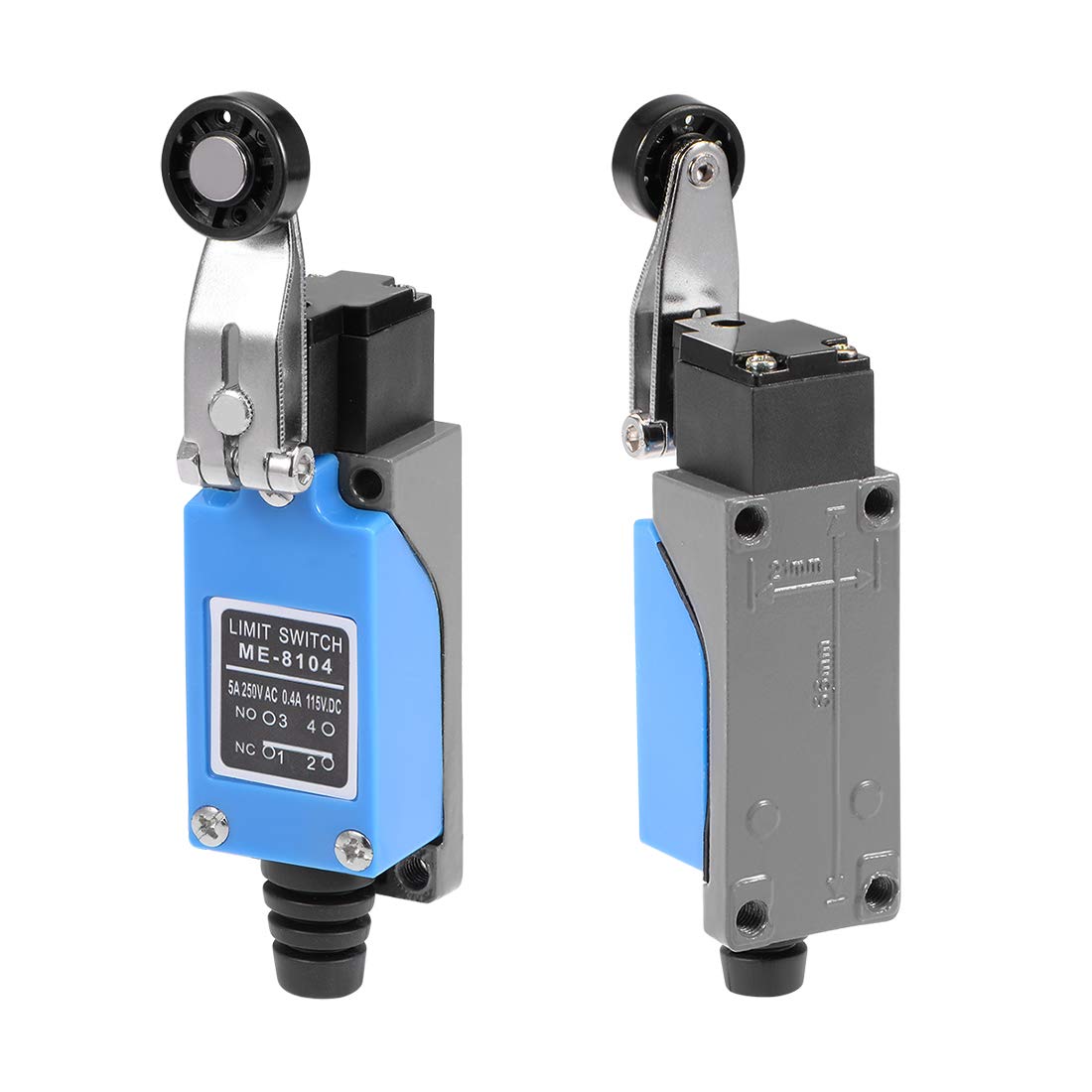

uxcell ME-8104 Roller Lever Arm Momentary Limit Switch 1NC+1NO - CNC Mill & 3D Printer Safety Switch for Door Control & Machine Automation | Perfect for Industrial Equipment, Woodworking Tools & DIY Projects

Specification:Product Name: Limit SwitchModel: ME-8104Actuator Type: Plastic Wheel Roller Lever TypeRated Voltage: 5A 250V AC / 0.4A 115V DCContact Configuration: 1NC+1NOBody Size: 64 x 28 x 25mm (L*W*T)Mounting Hole Size: M5Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W) The stroke in the operating direction is as large as 45° to 90°, the actual angle of which varies with the model.These roller lever limit switches are applied to a wide range of applications including object positioning and detection. Operating Characteristics:OF max.: 700g (6.86N)RF min.: 60g (0.59N)PT max.: 30°OT min.: 60°MD max.: 15°TT: 90° Description:Double circuit limit switch with build-in double reed mechanism.Zine alloy and intensive plastic shell, strong and hightly rigid construction.Smooth operation with highter OT.Brass contacts with 30% silver contained. Easy-to-wire design.This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.

Model ME-8104; Plastic Wheel Roller Lever

built-in basic switch with good electrical conductivity

Able to withstand some washdowns, shock and vibration

Easy-to-wire, smooth operation and reliable

Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
