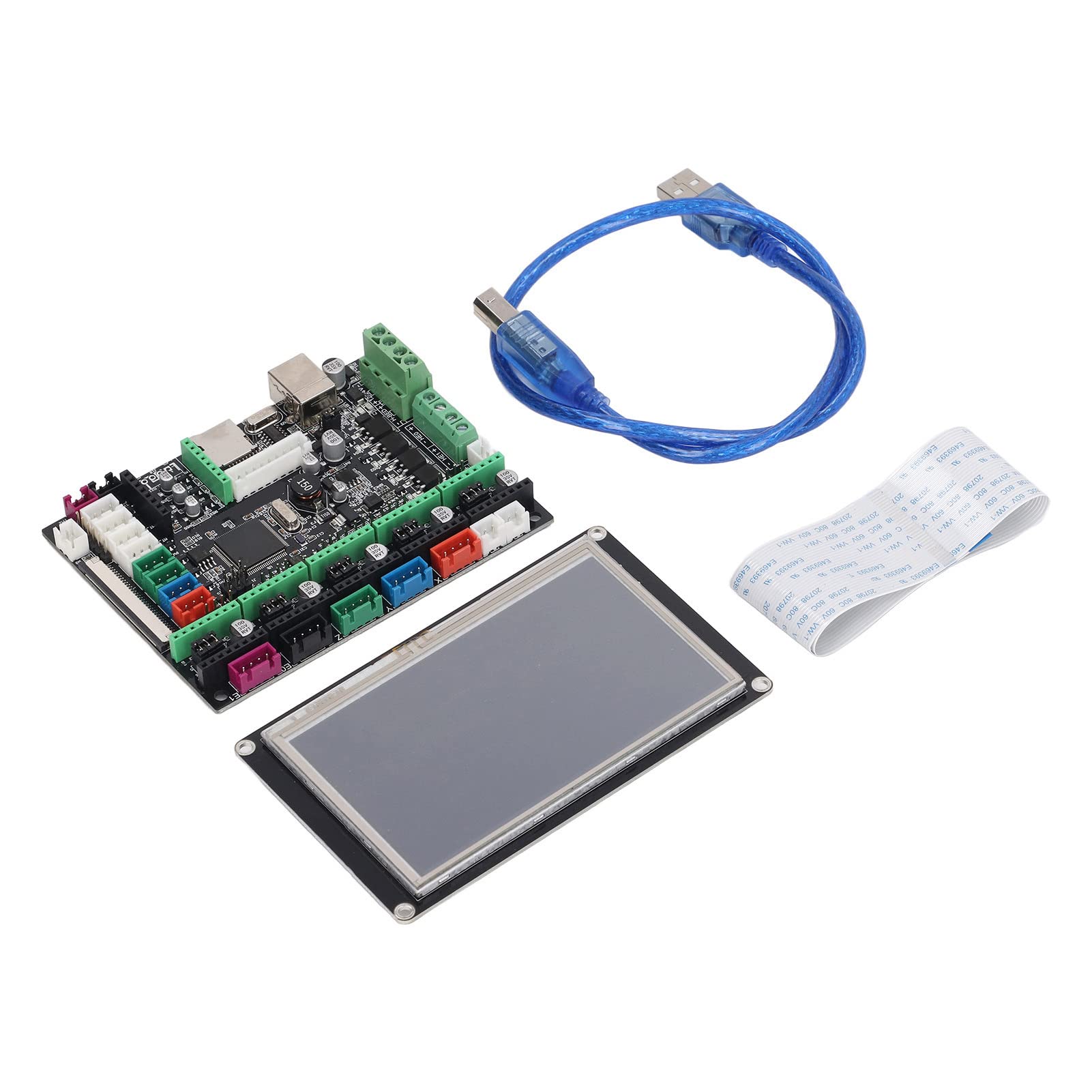

MKS Robin Nano V1.2 3D Printer Control Board Motherboard Module with 4.3" TFT Display - 12V/24V Compatible for Smooth 3D Printing Operations | Perfect for DIY 3D Printers, Repairs and Upgrades

How to Use 1. For Robin series motherboard has firmware. If there is no special requirement, the firmware does not need to be refreshed. The modified parameters are in the configuration file. The config file is in txt format. The modified parameters can be saved to the memory card and inserted into the motherboard for updating. For specific modification methods and functional configurations, please refer to the instructions of the corresponding motherboard. 2. To update firmware and configuration files on the motherboard, you can swipe the card through the memory card without software. Specification Item Type: 3D Printer Control Board Material: PCB Input Voltage: 12-24V Input Current: 5A-15ATemperature Sensor Interface: NTC100K, 31855 Support Print File Format: G code. Recommended Software: For Cura, for Simplify3d, for Frontinterface, for RPetier Host. Firmware Update: Storage card update Microprocessor: STM32 Motor Driver: 4988 8825 8729 and other drives and external drives. Color Touch Screen: For MKS Robin TFT43 Support Machine Structure: For XYZ, for delta, for kossel, for corexy. Package List 1 x 3D Printer Control Board 1 x Touch Screen 1 x PCC Pin Header 1 x USB Cable Note 1. The motherboard default firmware is for robin35 screen. If you get the for robin43 screen, you need to refresh the firmware yourself. 2. If the for robin43 screen does not support screen modification of machine parameters, the machine parameters can be modified in the txt file. Specification Item Type: 3D Printer Control Board Material: PCB Input Voltage: 12-24V Input Current: 5A-15ATemperature Sensor Interface: NTC100K, 31855 Support Print File Format: G code. Recommended Software: For Cura, for Simplify3d, for Frontinterface, for RPetier Host. Firmware Update: Storage card update Microprocessor: STM32 Motor Driver: 4988 8825 8729 and other drives and external drives. Color Touch Screen: For MKS Robin TFT43 Support Machine Structure: For XYZ, for delta, for kossel, for corexy. Package List 1 x 3D Printer Control Board 1 x Touch Screen 1 x PCC Pin Header 1 x USB Cable Note 1. The motherboard default firmware is for robin35 screen. If you get the for robin43 screen, you need to refresh the firmware yourself. 2. If the for robin43 screen does not support screen modification of machine parameters, the machine parameters can be modified in the txt file.

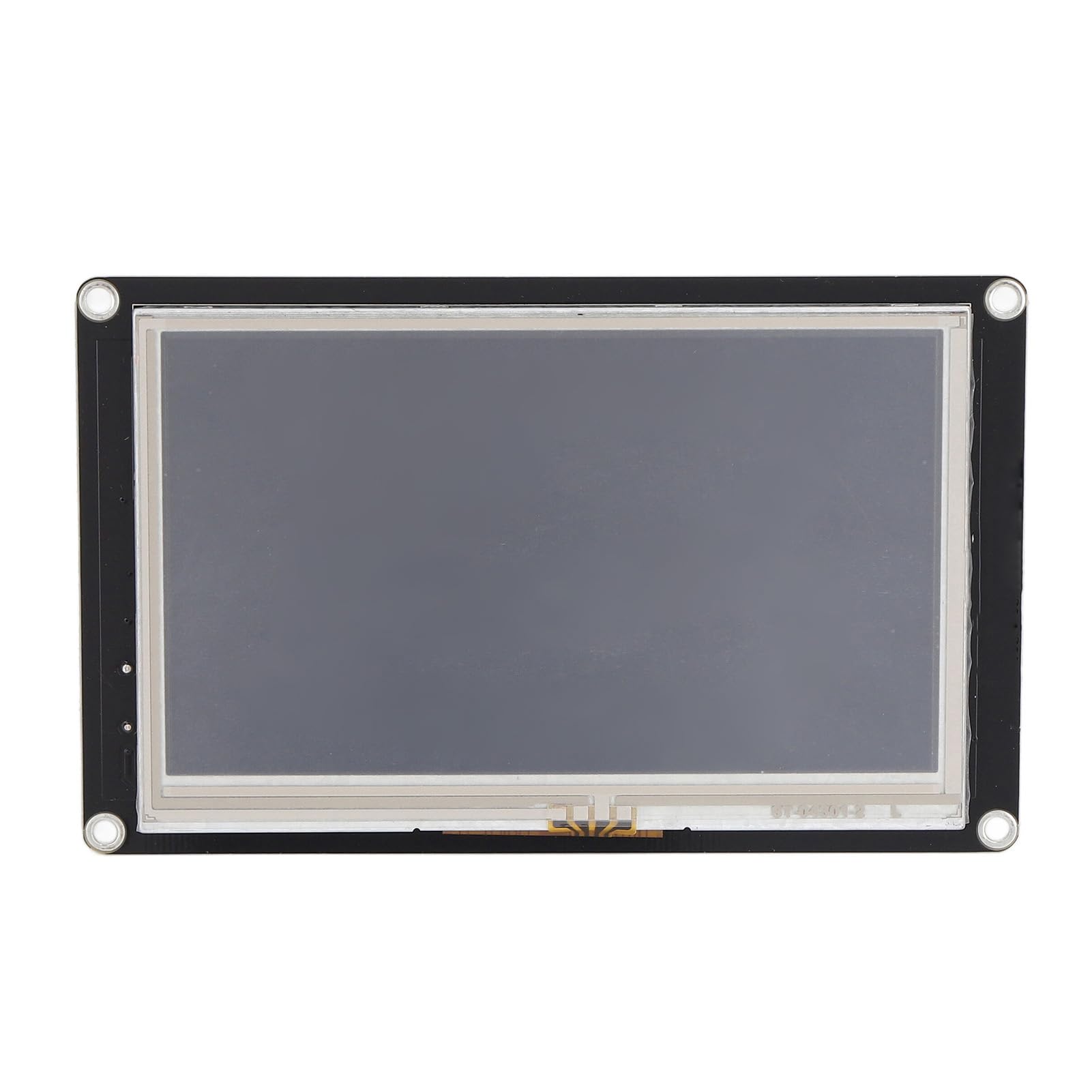

Printer Control For MKS Robin Nano uses a 32 bit high speed ARM chip as the main control chip, equipped with a TFT43 , which has a simple interface and high sensitivity. Firmware can be upgraded through memory card, and user interface can be customized.

Stable Working The flexible motor drive seat mode can support 4988 8825 and various direct plug in drives, and support other external drives to meet your requirements for various drives.

Easy External modules can be connected for the remote model printing. It also provides mobile APP of for Android and for OS X systems in both Chinese and English. The shutdown function can be realized by cooperating with the shutdown module.

Little Heat Special power supply chip is adopted to support 12V-24V power input. It can accept 24V input. Under the same system power, the hot bed current can be reduced to 1/4. High quality MOSFET tubes are used for better heat dissipation.

Configuration The interface of power on and all buttons can be designed by yourself. Up to 15 custom command buttons can be supported.Support breakpoint continuous typing function, power off saving function, and material break detection function.
