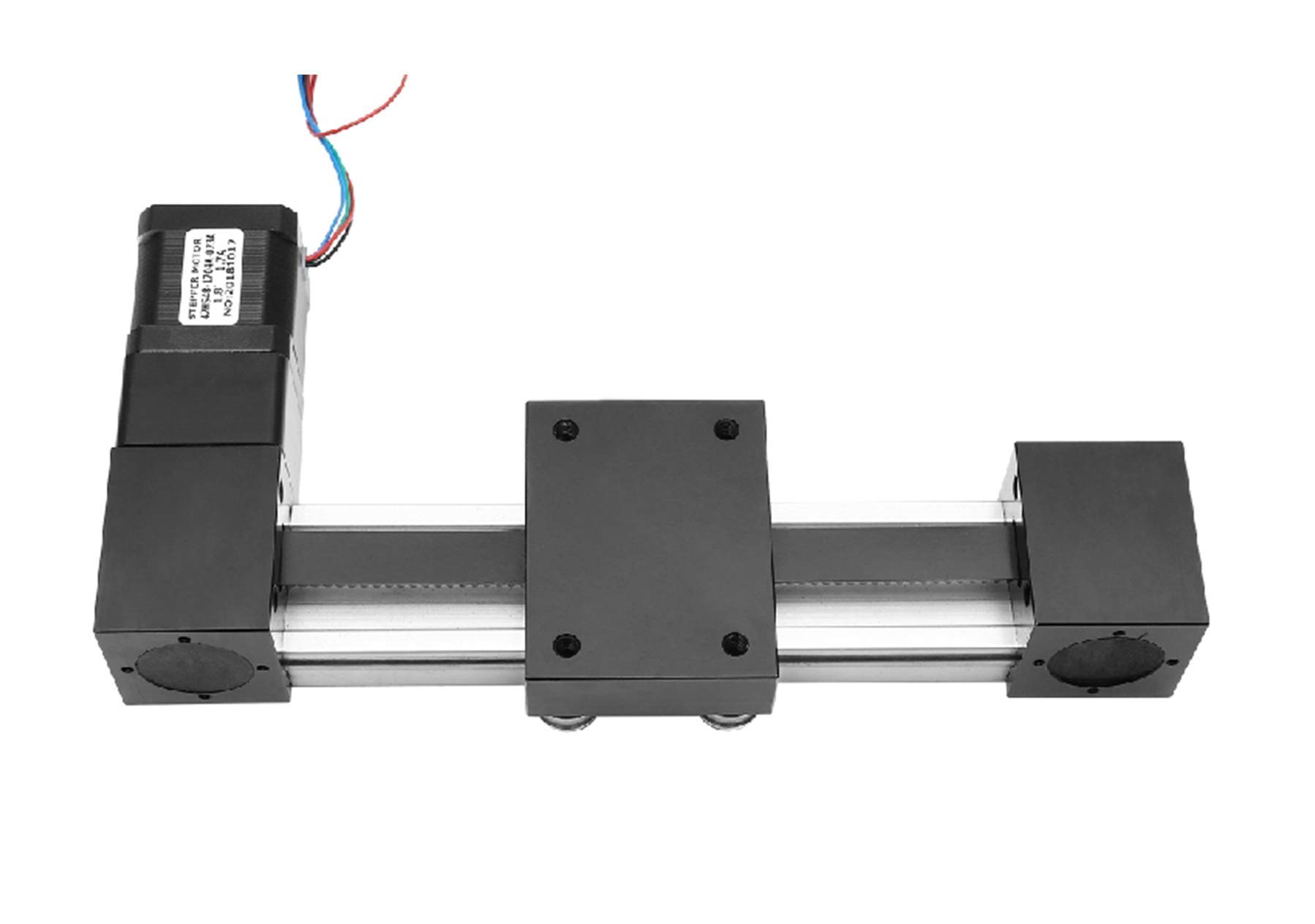

3M Roller Guide Slide Memory Belt Model - 800mm Effective Travel Length, 42 Stepper Motor Nema 17, XP Series Motion Sliding Table System for CNC & 3D Printer | Precision Linear Motion for DIY CNC Routers, Laser Cutters, and Automated Manufacturing Equipment

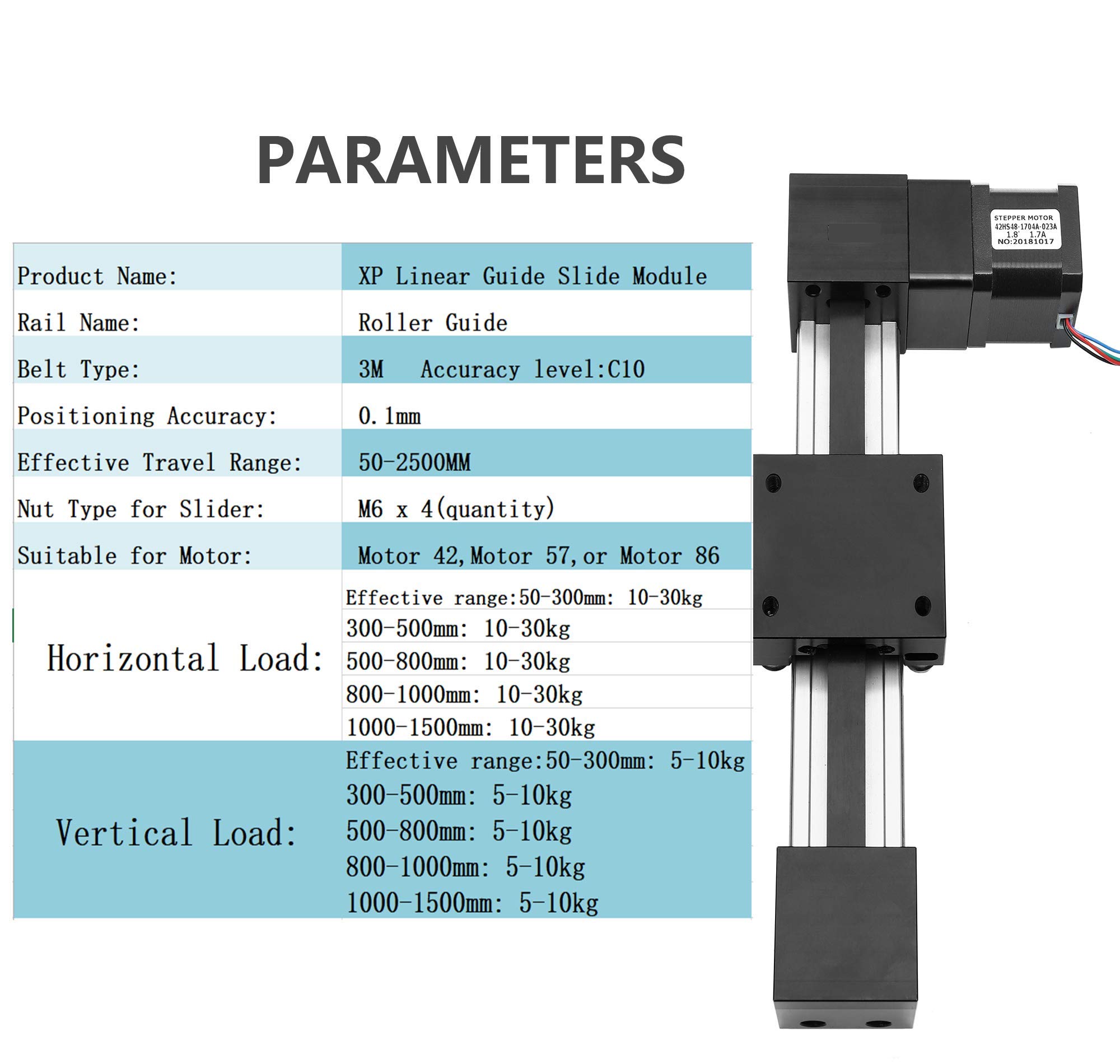

Note:The actual effective length has 10mm-15mm longer than the real effective length, which is for protecting the linear guide rail module. If you do not need the; additional length, please contact us! We would confirm with you the exact effective length.Product information:Effective length: 100-2000MMBelt Model: 3MGuide Type: Roller GuideMotor: 42*48 or 57*56 is opcionalScrew pitch (Lead)/ one revolution: 60MMThe highest speed: 600mm/sThe package includes Motor 42 （1.5A, 24V, 4.5kg/cm) but we also can provide you Motor 57(3A, 24V, 10kg/cm) . If you have other special requirement, please contact us online.Package includes : one slide table serie XP (regular) + one Stepper Motor

Effective Travel Length 800mm. Stepper motor Motor 42, Nema 17

Repeat positioning accuracy of up to ± 0.1mm

Belt Model 3M,which is for movement structural elements executed, with high precision, high efficiency, long life, low coefficient of friction, versatility, etc

The package includes Motor 42 (1.5A, 24V, 4.5kg/cm) but we also can provide you Motor 57 (3A, 24V, 10kg/cm) . If you have other special requirement, please contact us online.

Widely use equipment such as biotechnology, spraying equipment, punching machine, cutting machine, laser machine, cleaning equipment, welding equipment, packaging machines,DIY, CNC machine
