FYSETC Vorn 2.4 Hall Effect Endstop Switch - X/Y Axis Limit Sensor Board for 3D Printers (5V, Automatic, Gold Contact, Black) - Perfect for Voron 2.4, Rat Rig & DIY 3D Printer Projects

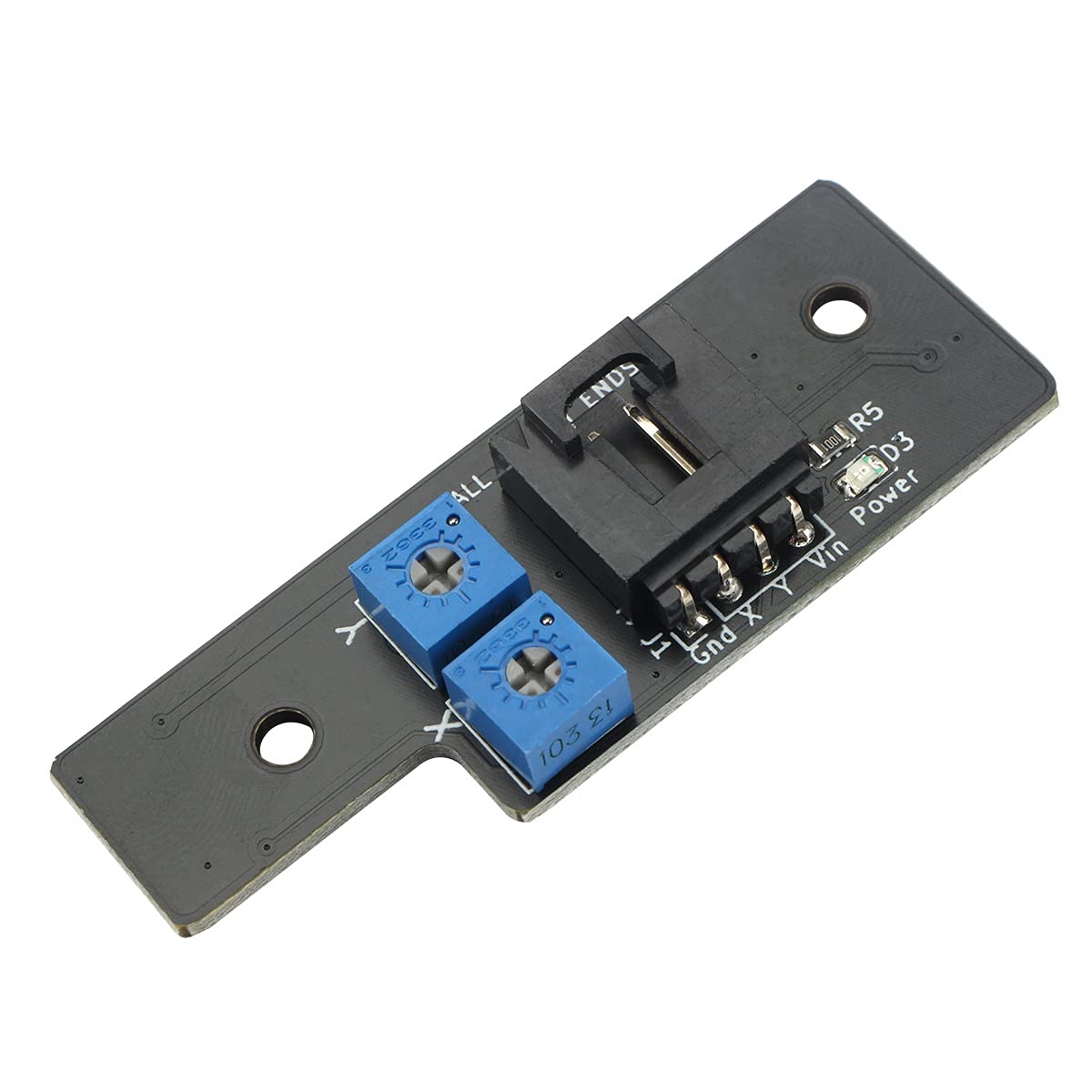

Please follow following procedure to setup Hall Effect Board: Make sure both the pots are centered. Then take a magnet for x axis.Try both the poles. Find the pole of magnet that triggers sensor within 1 inch of magnet. Install the X magnet into afterburner carriage. Please repeat the same process for Y axis and then install it in zblock. Package includes: 1x Hall Effect XY Endstop

A must spare accessory for Vorn 2.2/2.4 Hall Effect Terminal Limit Switch board

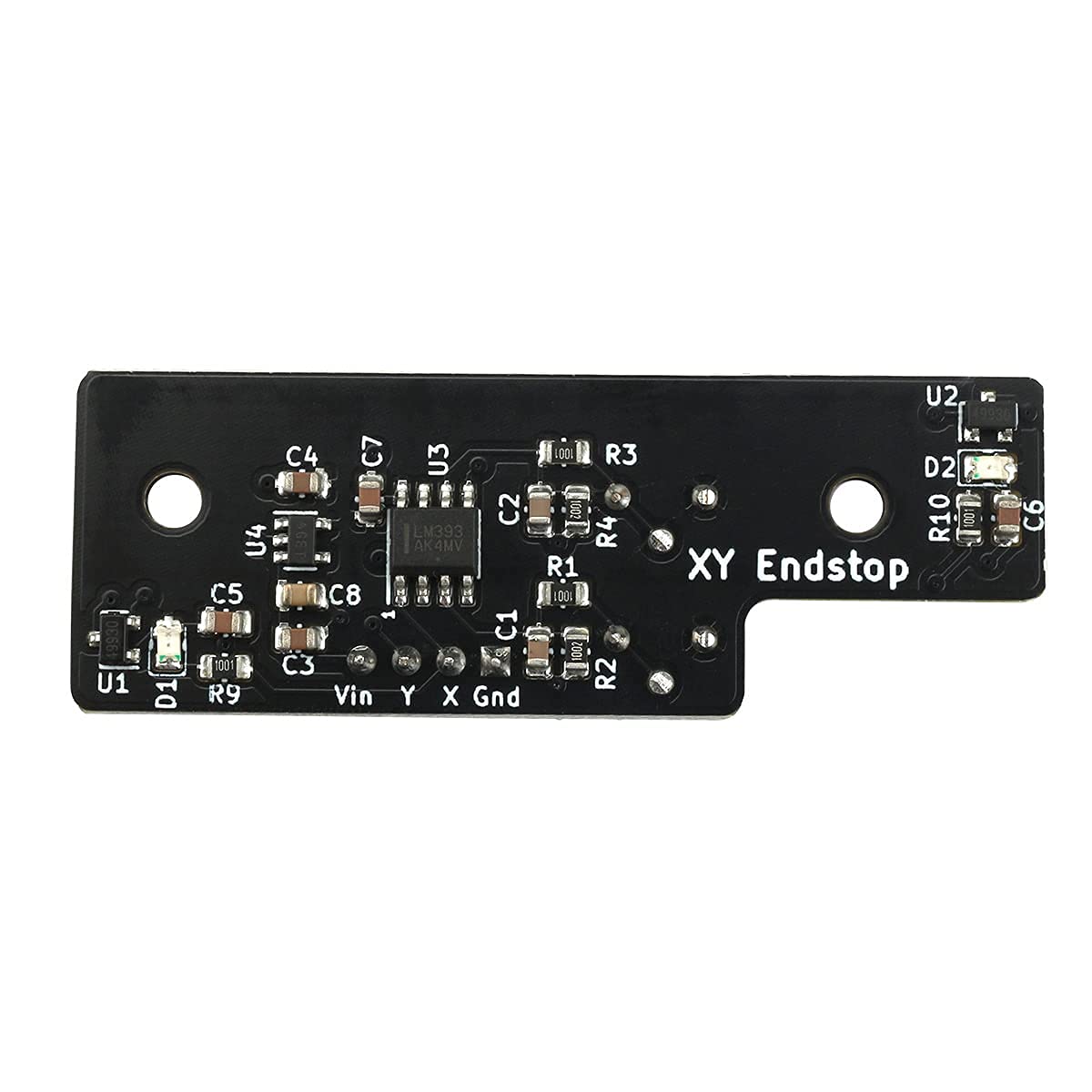

Vorn Hall effect endstop board for X/Y axis. Voltage 5V, Terminal ConnectorMX2.54(Mole-x 70543 series)

The Hall Effect board allows for contactless homing on the X and Y axis on a Voro 2. When hall sensor reaches close to magnet it produces a voltage. The circuit then compares that with a reference voltage. You need to modify the firmware by yourself

Package includes 1pack limit switch

Install Vorn Project has two limit switch to choose Mechanical endstop and Hall Effect, Enter our shop
