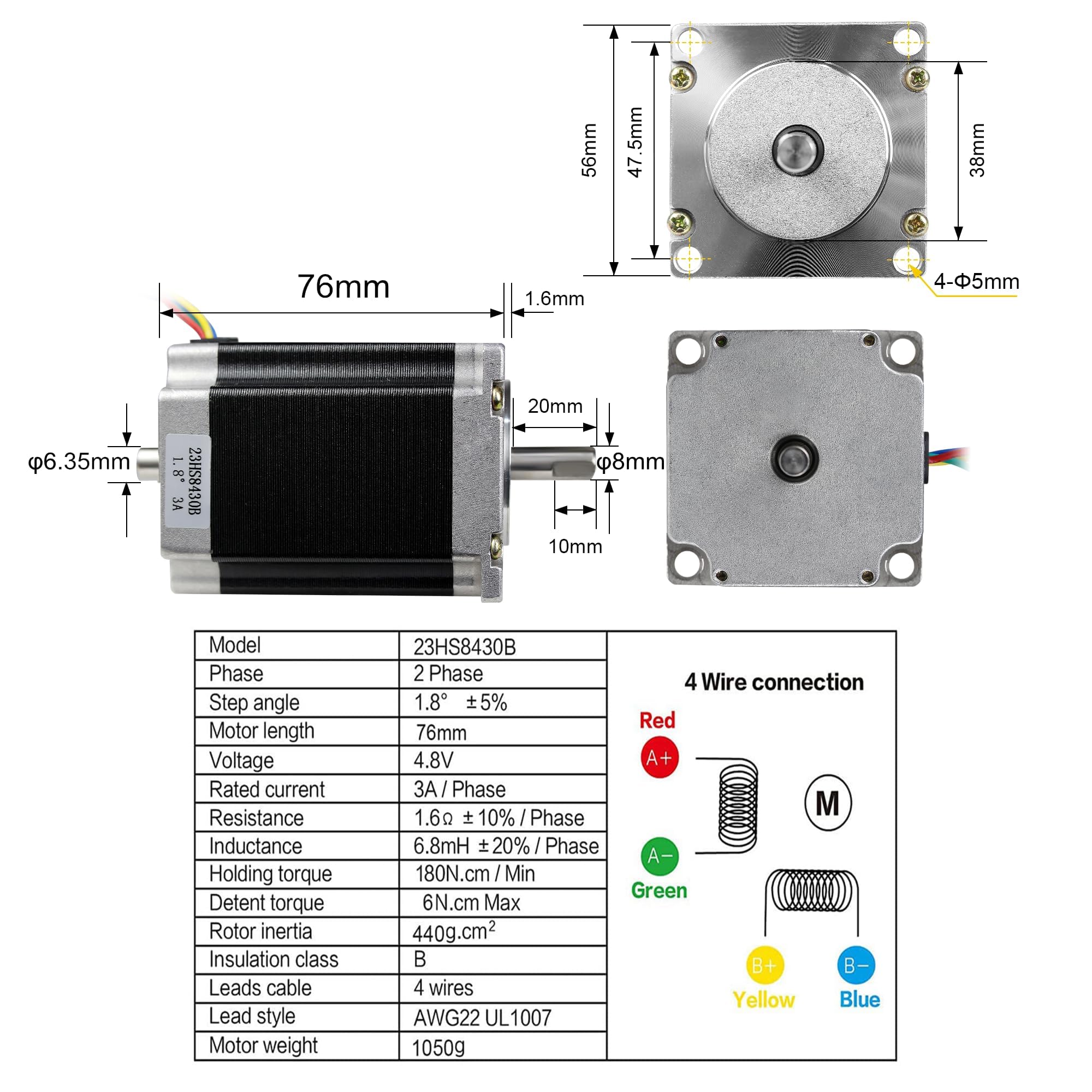

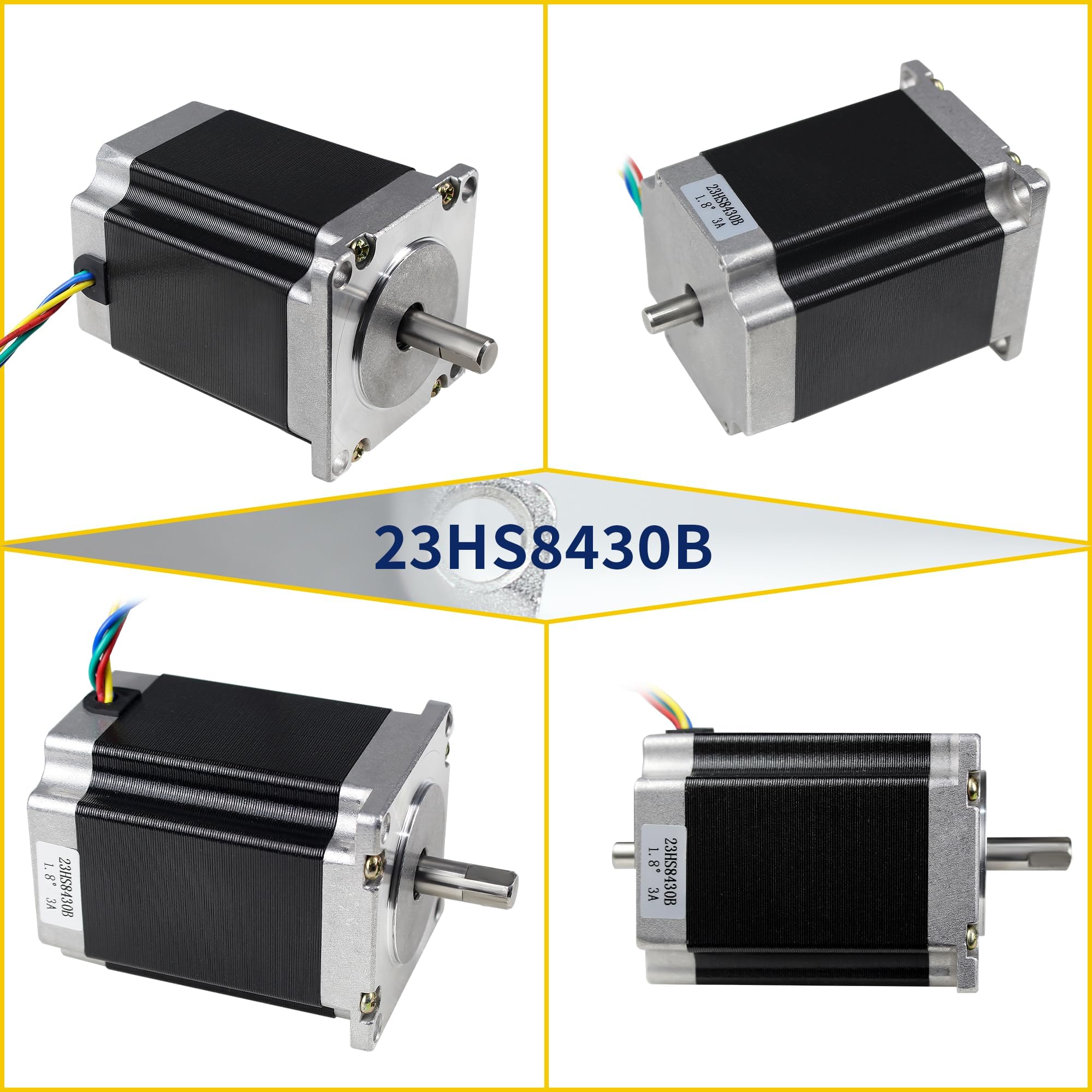

23HS8430B Nema23 Stepper Motor Package include: 1 x 23HS8430B Nema23 Stepper Motor (Dual shaft) (76mm, 270oz-in,3A) Electrical Specification: Model Number: 23HS8430BMotor Type: Hybrid StepperStep Angle: 1.8 degreeHolding Torque: 1.8Nm(270oz-in)Phase Resistance: 1ohmsRated Current/phase: 3Ainductance: 3.5mH+/-20%(1KHz)Frame Size: 57 x 57 x 76 mmBody Length: 76mmNumber of Leads: 4Weight: 1.2kg / 2.6 LBFront shaft is 8mm diameter shaft,21mm lenth,back shaft is 6.35mm dia and 10mm length 4-Lead Wire: Stepper motor's red wire connect to driver's A+ portStepper motor's green wire connect to driver's A- portStepper motor's yellow wire connect to driver's B+ portStepper motor's blue wire connect to driver's B- port General Specification: Step angle accuracy:+ - 5%(full step,not load)Resistance accuracy: + - 10%Inductance accuracy:+ - 20%Temperature rise: 80deg Max(rated current,2 phase on)Ambient temperature: 20deg-50deg Advantages: Our motor is made of solid and durable metal. The perfect combination of rubber and rotor makes the internal structure more stable, and also reduces the vibration and noise when the engine runs.The motor runs more quietly, with a high torque of 270oz in. The coil uses pure copper enamelled wire to ensure that long-term operation will not lead to excessive engine temperature.The rotor surface is coated with high-quality epoxy resin adhesive to isolate the adsorbed burrs on the rotor surface, more stable magnetic field and longer service life of motor. Usage or Application This products are widely used in engraving machine, printer, medical equipment,embroidery machine, stage lighting, textile automation, printing,packaging and other industries automation equipment. Customer Reviews Price Material Steel Aluminum Aluminum Plastic
