Specification:Item Type: 3D Printer PT100 ModuleMaterial: PCB, PVCChip: MAX31865Applicable to: For Spider V2.2 MotherboardHow to Use:Klipper1、SSH into yourRaspberryPiand edit yourprinter.cfgfile usingnano.2、Remove any old thermistor configuration under [extruder]. (sensor_type, sensor_pin, etc.)3、Under [extruder] add these lines:sensor_type: MAX31865sensor_pin: PD11 # I pulg into Spider E4‑MOT socket, `cs` pin is the sensor pinspi_speed: 4000000spi_software_sclk_pin: PE12spi_software_mosi_pin: PE14spi_software_miso_pin: PE13rtd_nominal_r: 100rtd_reference_r: 430rtd_num_of_wires: 24、If you are in EU or any 50 Hz country add this line:rtd_use_50Hz_filter: True5、Save your changes by typing CTRL+X, Y, [ENTER]. Send FIRMWARE_RESTART from the console in Octoprint and test! It should work.6、Run PID tuning. PT100 readings will be different from your previous thermistor. For the best thermal accuracy, follow this to PID tune:1. Heat your bed to 100C.2. Move your hothend to the center and 5‑10 mm above bed3. Set fans to 25%: M106 S644. Run: PID_CALIBRATE HEATER=extruder TARGET=2455. This will run for a few minutes. When finished, save with: SAVE_CONFIGPackage List:1 x Detection Module1 x Thermal Wire1 x Extension Cord

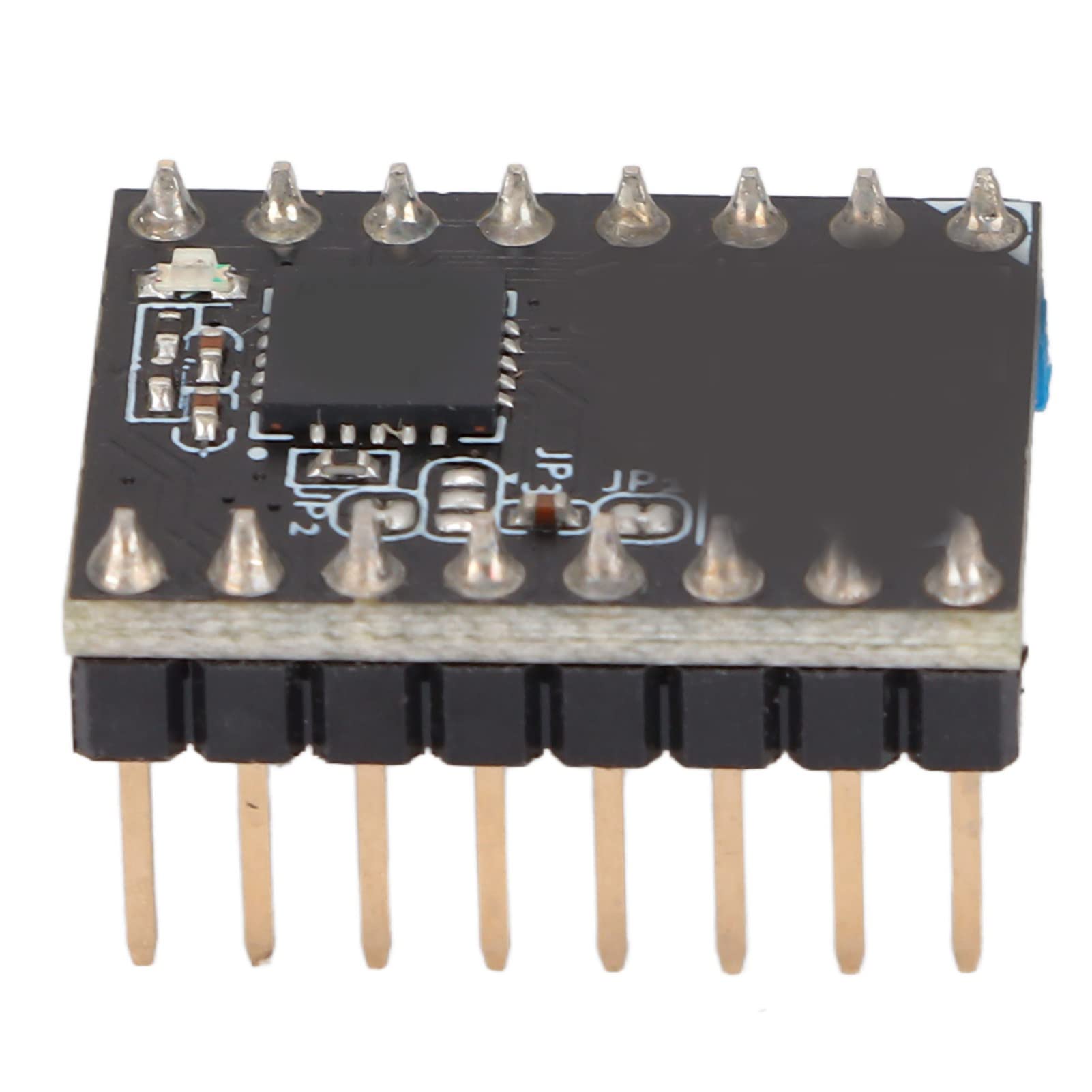

Included Accessories: 3D Printer PT100 module includes 1 PT100 module, 1 thermistor cable, 1 thermistor extension cable.

MAX31865 Core: PT100 module is used for motor socket, MAX31865 chip, stable performance and stable operation.

Scope of Application: temperature measurement module, professional design, suitable for Spider V2.2 motherboard.

PCB and PVC Material: The 3D Printer PT100 module is made of PCB and PVC material, which is small and portable, durable and can be used for a long time.

XH2.54 4P Terminal: A thermistor extension cable is included, 2.4m in length, with XH2.54 4P terminal and MX2.0 2P terminal.
