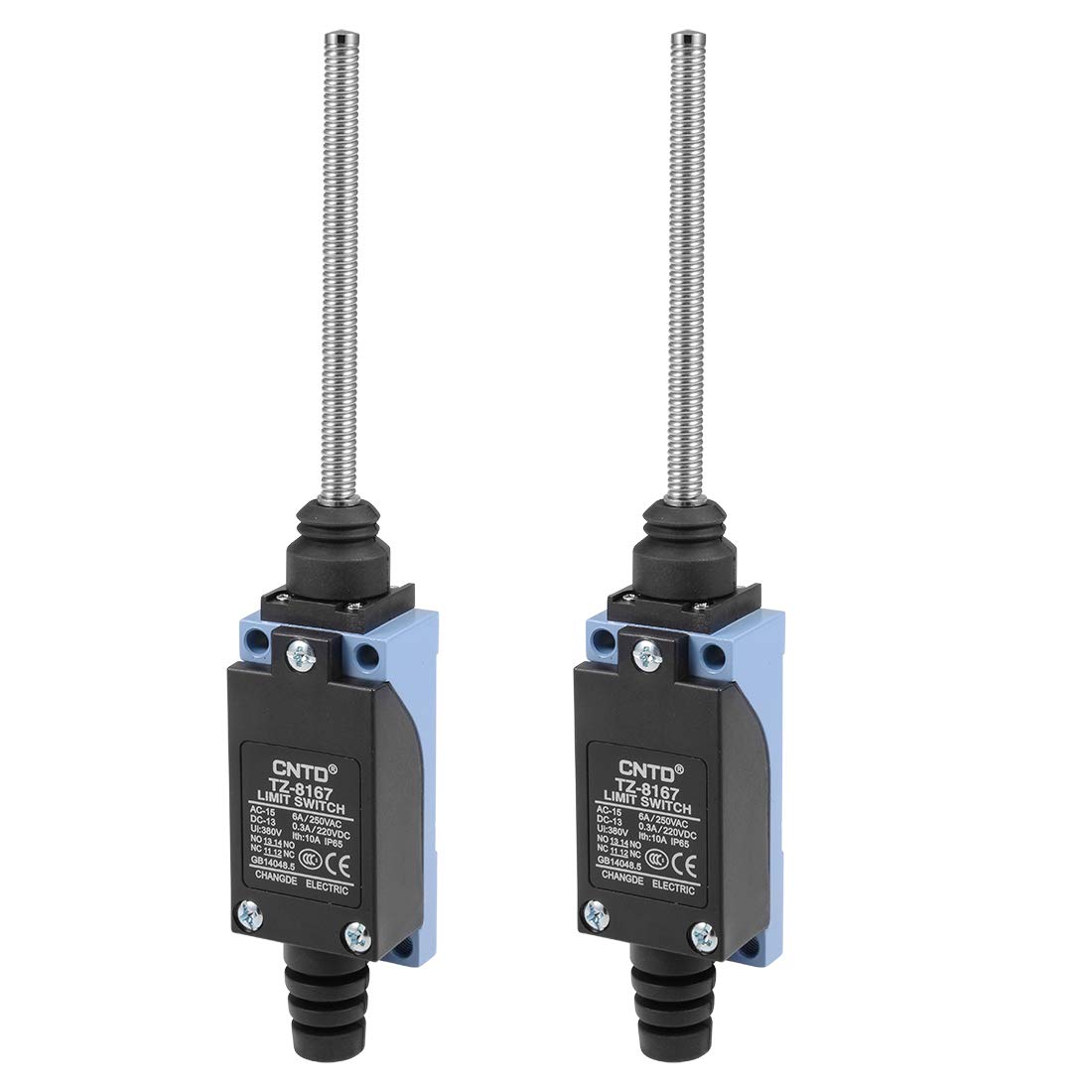

UXCELL 2PCS TZ-8167 Limit Switch with Flexible Coil Spring Rod 1NC+1NO for CNC Mill, 3D Printer, Door Switch - Perfect for Industrial Automation & Machine Safety Control

Specifications:Product Name: Limit SwitchModel: TZ-8167Actuator Type: Flexible Spring Rod TypeRated Voltage:AC-15: (Ue/Ie) 250V/6ADC-13: (Ue/Ie) 220V/0.3AContact Configuration: 1NC+1NOMounting Hole Size: M4Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W) Note:The coil spring can be operated in any direction except the axis direction.The use of the coil spring is for that are not uniform in size or direction. Operating Characteristics:OF max.: 150gPT max.: 30mm Features:Double circuit limit switch with build-in double reed mechanism.Zinc alloy and intensive plastic shell, strong and highly rigid construction. (Head and cover snugly fit in box)Constructed in small size. Water-proof and oil-proof.Built-in basic switch with double spring mechanism, longer mechanical life.Smooth operation with greater OT.Easy-to-wire circuit opening design.This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection. Product Contents:2 x Limit Switch with mounting screws

Model ME-8167; Flexible Spring Rod Limit Switch

Designed to control the movement of a mechanical part

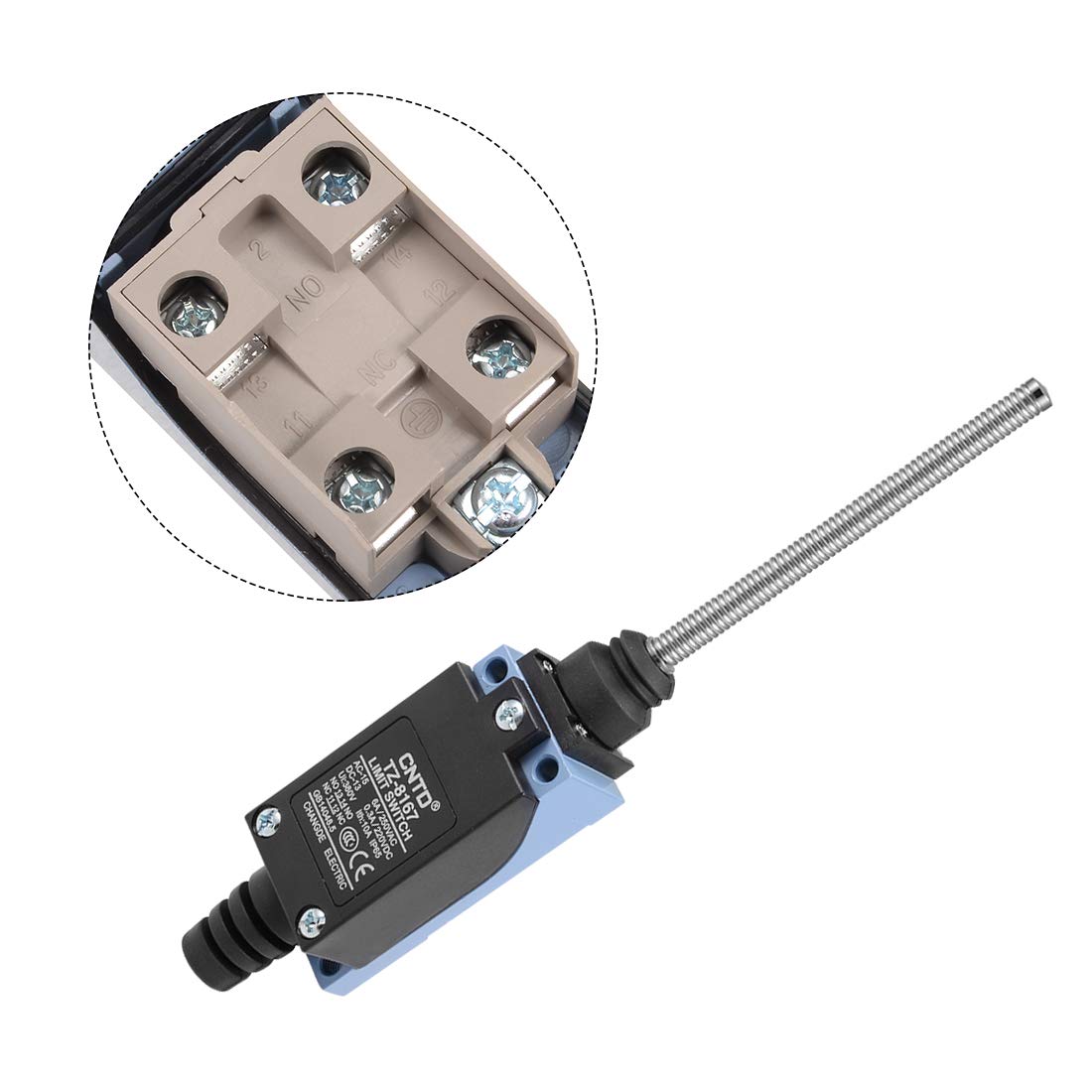

built-in basic switch with good electrical conductivity

IP65 Protection. Able to withstand some washdowns, shock and vibration

Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
