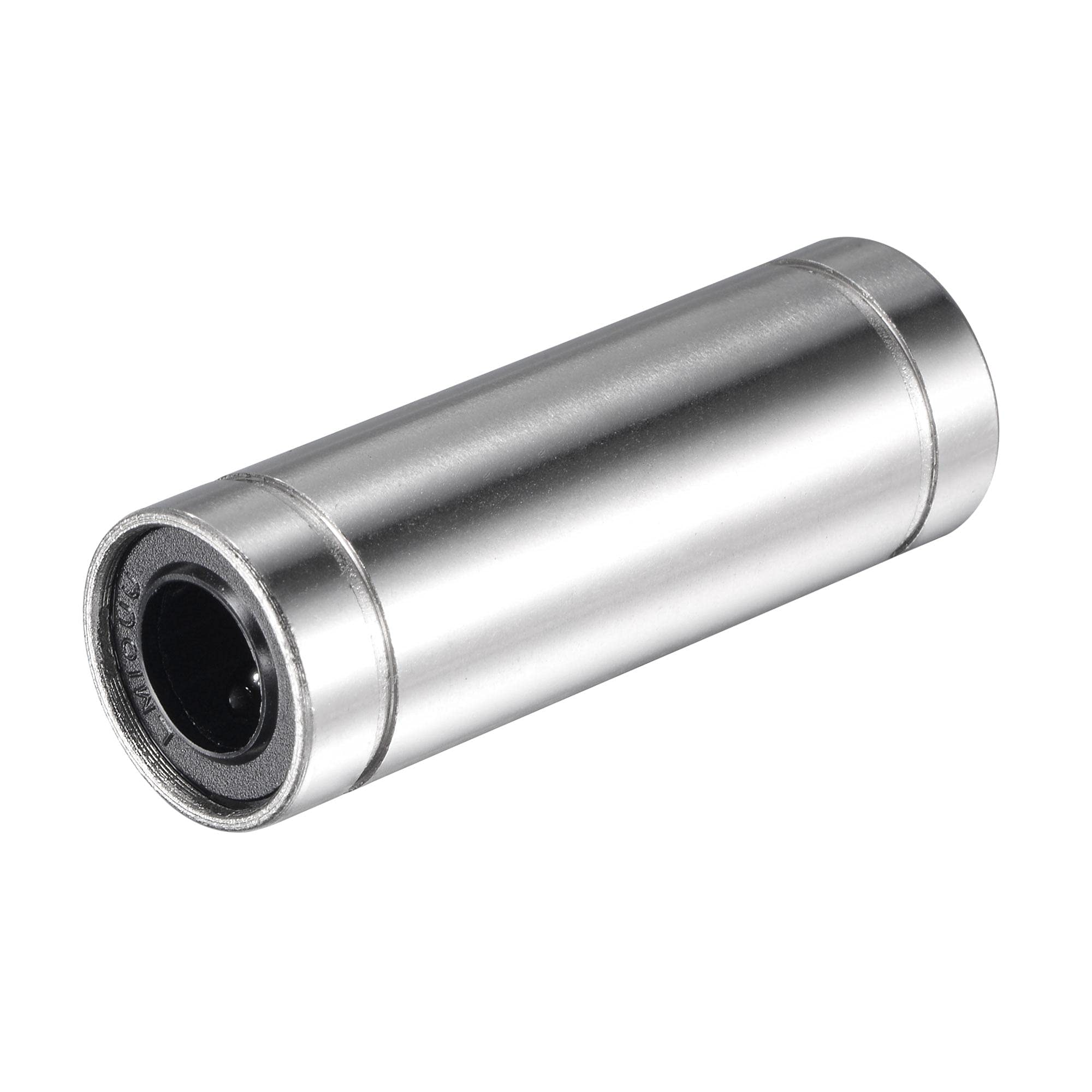

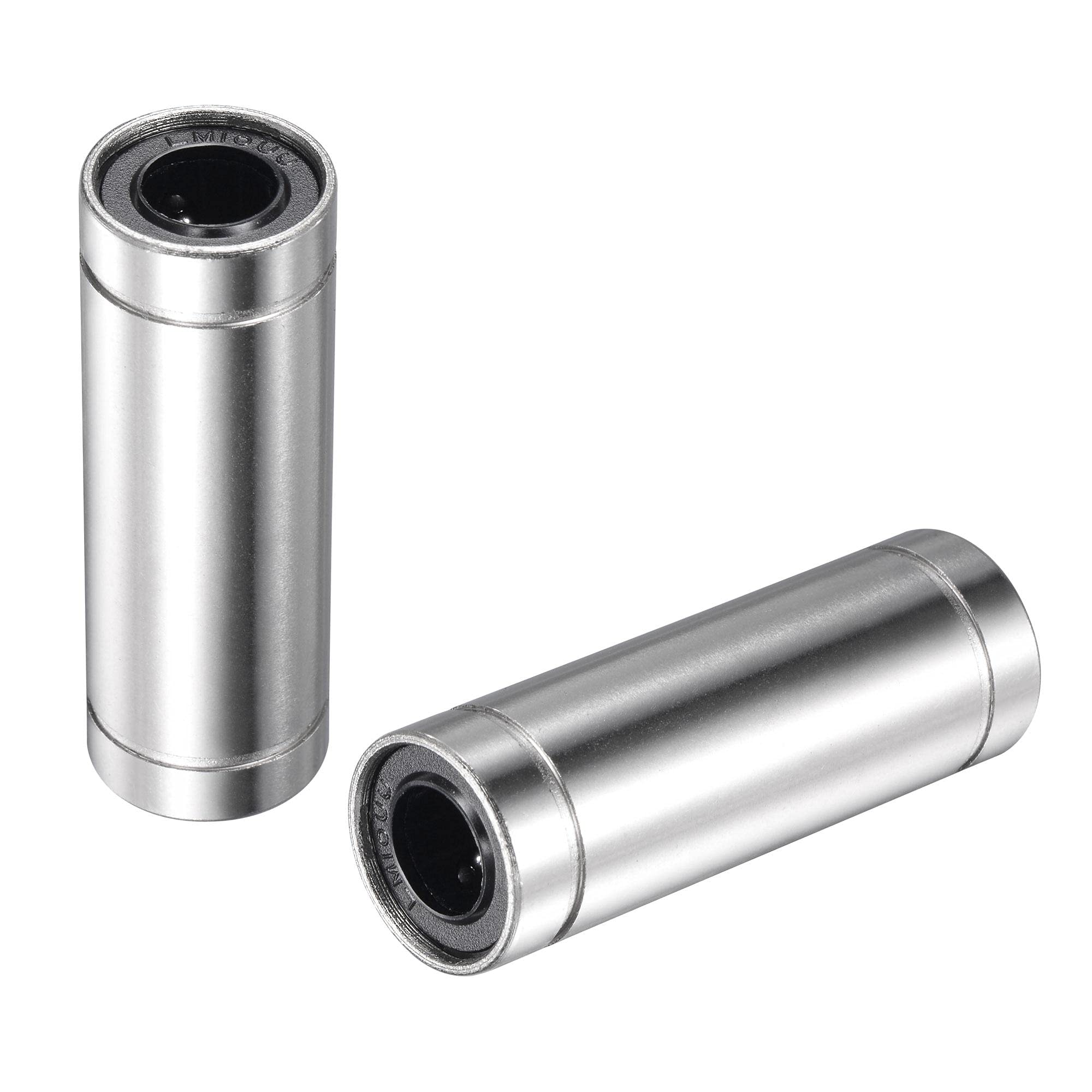

LM10LUU Linear Ball Bearings 10mm Bore 19mm OD 55mm Length Nickel Plated - 2 Pack for CNC Machines, 3D Printers, Robotics & Automation Systems - High Precision Motion Components for Industrial Applications

Descriptions:Linear bearings are widely used in electronic equipment, tensile testing machines and digital three-dimensional coordinate measuring equipment and other precision equipment, as well as multi-axis machine tools, punch presses, tool grinding machines, automatic gas cutter, printers and other industrial machinery sliding.Linear bearings are linear motion systems for use with cylindrical shafts. Since the carrier ball is in point contact with the shaft, low loads are applied. The steel balls rotate with very little frictional resistance, which results in a smooth motion with high accuracy.Specifications:Model: LM10LUUHousing Material: Chrome SteelFinished: Nickel PlatedCage Material: NylonInner Diameter: 10mmOuter Diameter: 19mmTotal Length: 55mmStatic Load Capacity (Cor): 1100NDynamic Load Capacity (Cr): 588NPackage Contents:2 x Linear Bearings

[SIZE] - Model LM10LUU, 10x19x55mm Metric Double Seal Chromium Steel Linear Bearing

[USAGE] - Linear bearings are part of linear motion systems, often used in conjunction with cylindrical shafts or guideways

[FEATURES] - Nickel plating enhances corrosion resistance and durability. These linear bearings with Nickel-Plated surface treatment can operate under corrosive or high-temperature conditions

[CAPABILITY] - Static Load Capacity (Cor) 1100N, Dynamic Load Capacity (Cr) 588N (Recommended load is 80% of rated load, not to exceed rated load.)

[APPLICATIONS] - Mechanical slides, 2-axis and 3-axis tables, linear tables, 3D printers, etc.
