800mm MGN12 Linear Rail Guide with 2 MGN12H Carriage Blocks - High Precision Linear Motion System for 3D Printers, CNC Machines, Laser Cutters & DIY Projects | Perfect for X/Y Axis Smooth Movement & Industrial Automation Applications

MGN12(MR12) linear guide 800mm with 2pcs MGN12H carriage block. There are 2 red rubber stoppers on the ends of the rail in case the carriage falls off the rail, please remove them after assembling the rail on your machine if necessary. Packing list: 1 * MGN12 linear rail guide 800mm length 2 * MGN12H carriage block(been installed on the rail) 2 * steel balls(for backup)

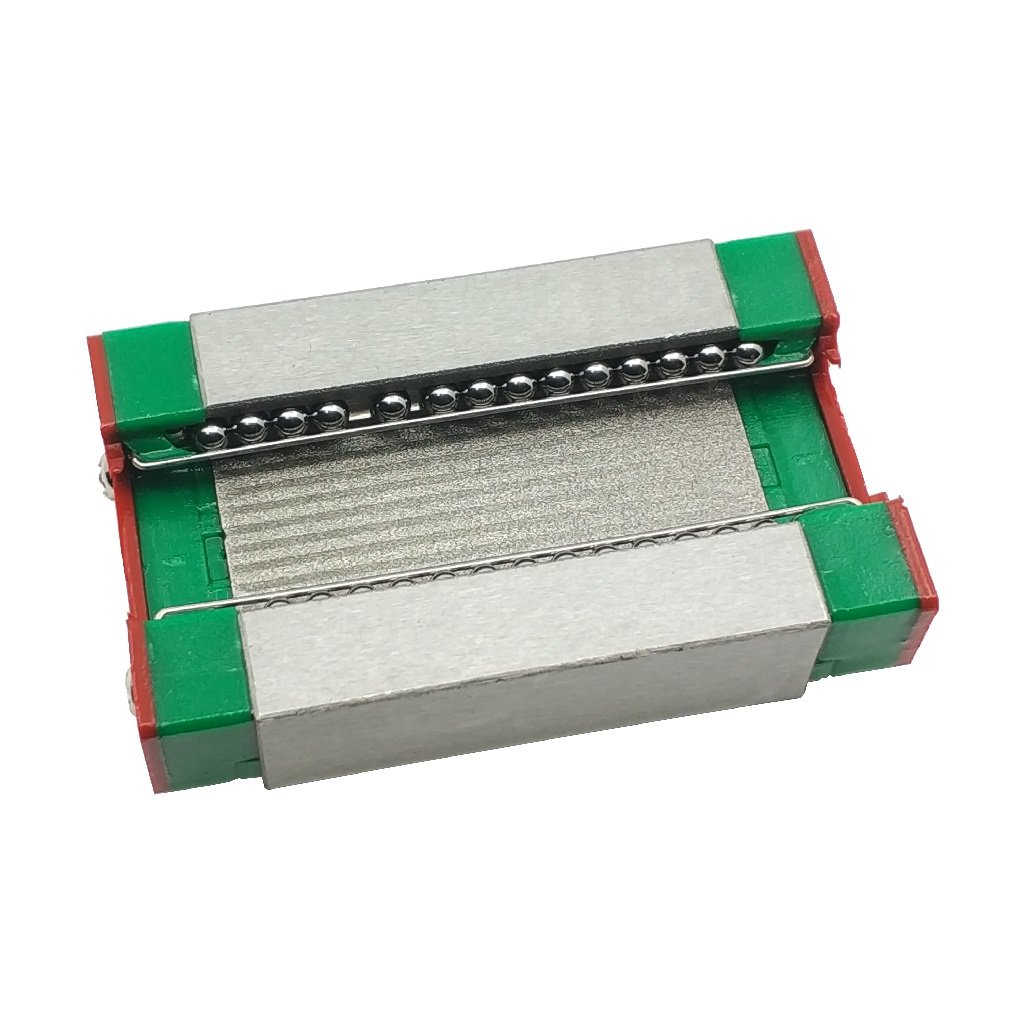

800mm MGN12 linear rail guide with 2 MGN12H blocks

There are 2 red rubber stoppers to keep the block on the rail

Threaded holes of the block 4-M3*3.5; center distance of the holes 20*20mm

It is suggested to use M3 socket head cap screws and T nuts if you fix it to 20 series EU Al-profile

Come with 2 spare balls in the package for backup
