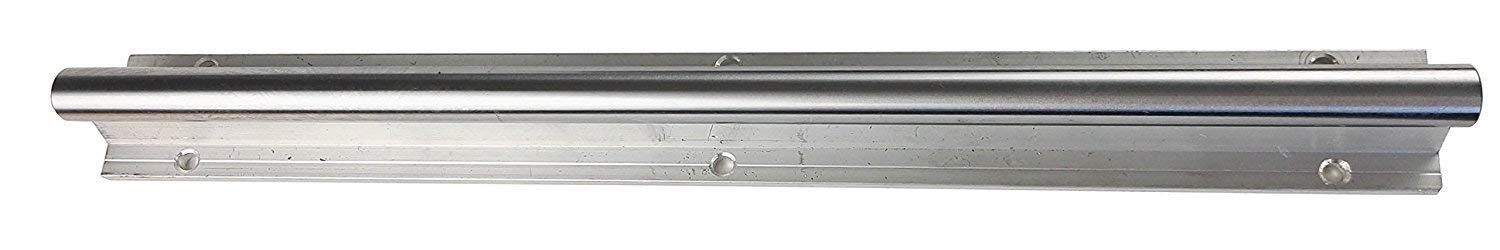

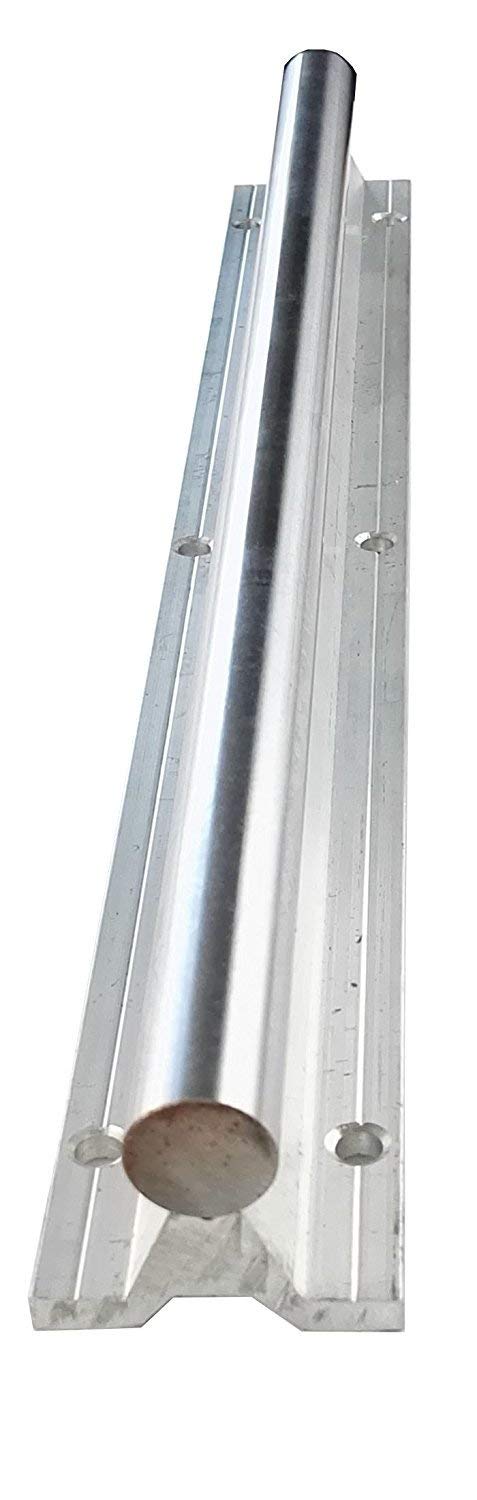

TEN-HIGH SBR12 2000mm Linear Guide Rail for CNC Machine & 3D Printer - High Precision Linear Motion Slide Rail (1pc) - Perfect for DIY CNC Routers, Laser Cutters, and Industrial Automation Equipment

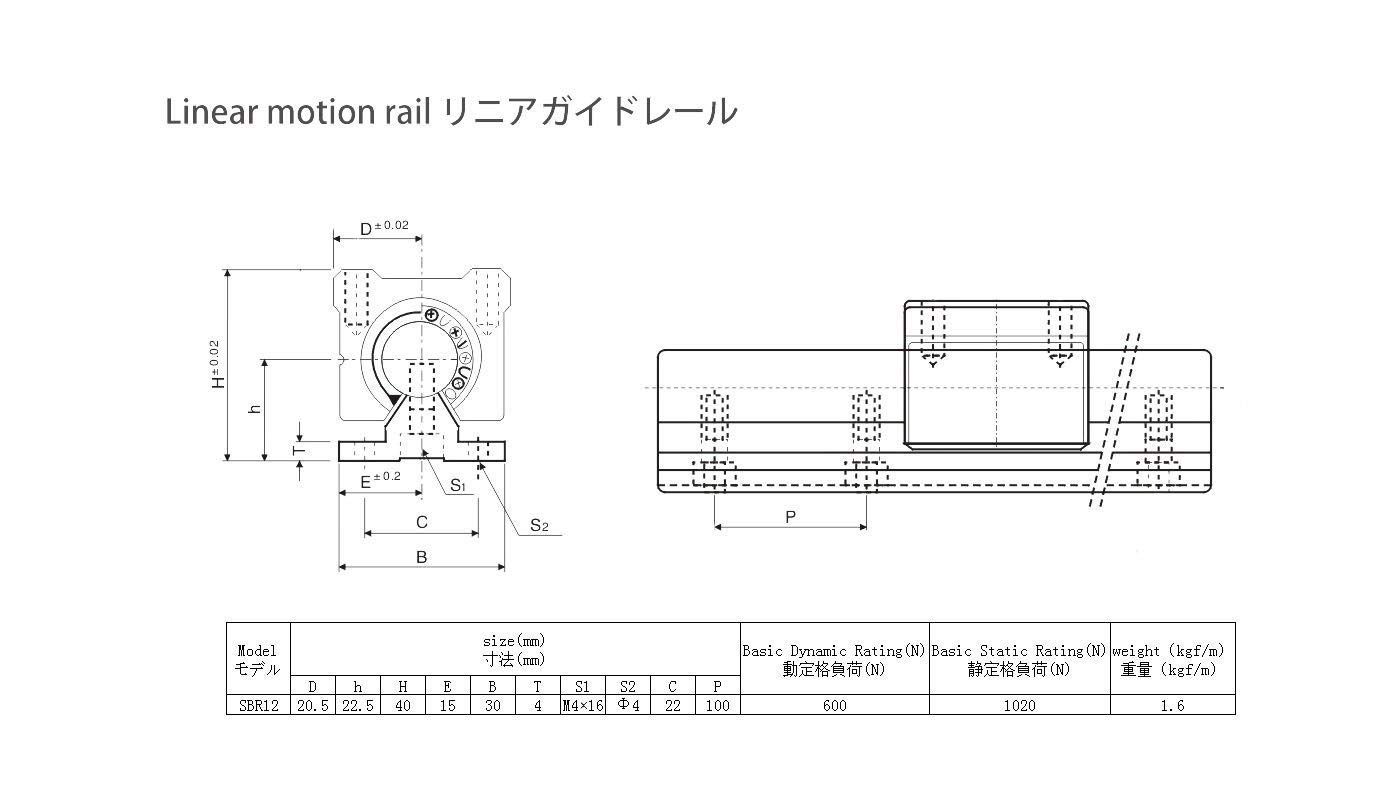

Notice: If there doesn’t have the size you need or have special requirements, we can also customize for you, as long as let us know. After receive the package, please check the product at first. If there any problem, let us know in time, so that we can provide after-sales services for you. WE DON’T WANT OUR CUSTOMER TO WASTE THEIR TIME AND MONEY, AND WILLING TO PROVIDE THE BEST SERVECES. We will install the Block on the Rail in advance. There are some steel balls inside the Block, please don’t remove it from the Rail. Otherwise, those steel balls will fall out and hard to put them back.Parameter: please refer to the image above. 1pcs Rail 1pcs Rail + 2pcs UU Blocks 2pcs Rail + 4pcs UU Blocks 1pcs Rail + 2pcs LUU Blocks BallScrew Add to Cart Buying Options Add to Cart Buying Options Add to Cart Customer Reviews 4.4 out of 5 stars 4 3.4 out of 5 stars 37 — 5.0 out of 5 stars 3 4.4 out of 5 stars 15 Price $39.62$39.62 — no data $118.80$118.80 — no data $130.90$130.90 Rail 1pcs SBR 1pcs SBR 2pcs SBR 1pcs SBR SFU & SFE & DFU Block none 2pcs UU Blocks 4pcs UU Blocks 2pcs LUU Blocks no data

【RAIL SIZE】Length 2000mm/78"; Width 30mm/1.17"; Diameter 12mm/0.858"; Pitch 100mm/3.9"; Rail Fixing Bolt Diameter 4mm

This variation does not include Blocks, if you need the Bearings, please refer to our other listing.

[EASY INSTALLATION] Pre-drilled holes and Pre-load the blocks, can be used Vertically and Horizontally. [HIGH QUALITY] Made of good bearing steel and aluminum alloy, surface chrome plated treatment and then made it mirror polished. With high hardness and accuracy, corrosion-resistant, wear resistance, anti-backlash and anti-rust, more durable. [HIGH PRECISION] The Support Unit provides max rigidity and stiffness to the shaft throughout the whole stroke, which ensures the performance of the unit.

【APPLICATIONS】This Linear Guide Rail can help build an linear motion system. Widely used for DIY CNC routers, grinding machine, lathes, mills, machine tools, bending machines, laser welding machines, punch, tool grinding machine, automatic cutting machine, printer, card sorting machine, food packing machine, X-Y table, etc. Also suitable for large-scale transmission equipment, including industrial robots, cracker machines.

PACKAGE INCLUDES 1pcs SBR12 2000mm Rail
