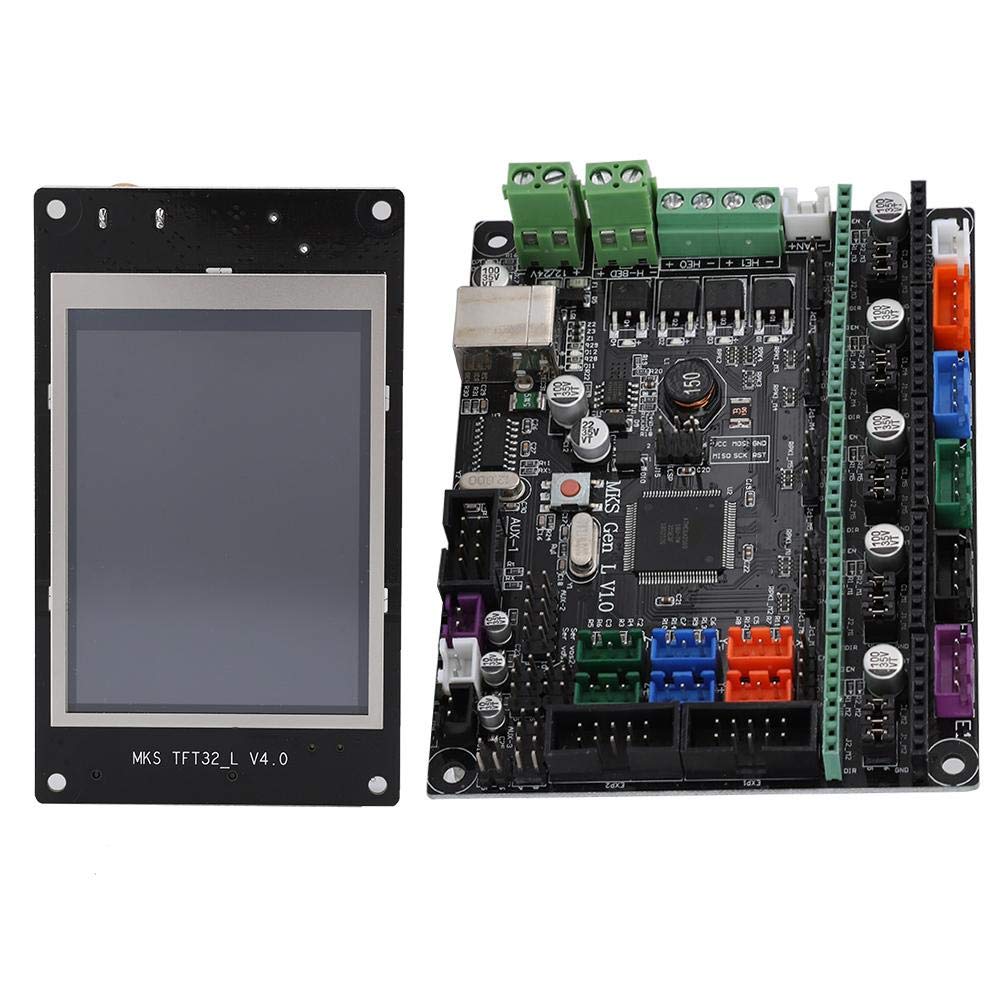

MKS-GEN L v1.0 Motherboard with TFT32 3.2-inch Color LCD Touch Screen & 5x A4988 Driver Modules - Complete 3D Printer Control Board Kit for DIY Printing, Repairs and Upgrades | Perfect for Creality Ender 3, CR-10, Anet A8 3D Printers

Specification: Compatible with for Marlin / Smoothieware / Repetier firmware Appearance size: approx. 110 * 65mm / 4.33 * 2.56inch Color touch screen: 3.2-inch touch screen Microprocessor: 32-bit STM32 processor Update method: Secure digital memory card file update Support Secure Digital Memory Card, U disk Support file format: Gcode Scalable application: WIFI module, shutdown module, cut off detection switch, continuous power failure, external card slot Package list: 1 * MKS-GEN L Motherboard 1 * TFT32 Display 5 * A4988 Red Drive 5 * Heat Sink 1 * USB Cable 1 * Flat Cable

The 2560 and for ramps1.4 are assembled on the board to solve the complex interface of the for Ramps1.4 interface and the problem of easy failure.

Replaceable motor drive, support 4988 drive and 8825 drive, TMC2100 drive, s109 drive.

An external drive signal is reserved to connect an external drive to drive the 57, 86 motor.

High quality MOSFET tube for better heat dissipation and long-term stability.

The special power chip is used to support the 12V-24V power input, which solves the problem that the Ramps voltage conversion chip generates heat and the power supply is insufficient.
